Fire Rated Applications (Interior)

Image Product Name Features and Benefits Movement Capabilities Available Joint Sizes
 CSS(FR) CSS(1FRV)-Series

CSS(2FRV)-Series

CSS(3FRV)-Series

♦ For use in vertical applications
♦ Available in 1, 2 or 3 hour fire ratings
♦ Product features waterproof silicone faces on each side of a fire-retardant impregnated foam sealant, without the need for an additional set of intumescent bellows
♦ Designed to be used alone, but can be used behind any other expansion joint cover, plate or filler where joint depth allows
♦ Depending on the application, this product can be supplied un-coated or coated on one or both sides. Un-coated material is to be used in enclosed applications only
♦ Pick resistant urethane faces can be used in applications where vandalism is a concern
♦ Sizes available in 1/4” increments
♦ Available in Dow Corning ® 790 and Pecora 890 Colors: Actual Colors may vary. See Dow Corning ® 790 and Pecora 890 Color Chart for exact color match.
 +/- 50%

1/4" to 2.25"

(6.4mm to 57.2)

 CST(FR) CST(1FRH)-Series

CST(2FRH)-Series

CST(3FRH)-Series

♦ For use in horizontal applications; designed for expansion joints in decks and floors where water-tightness, fire-rating and traffic durability are required
♦ Product features waterproof silicone faces on each side of a fire-retardant impregnated foam sealant, without the need for an additional set of intumescent bellows
♦ No additional fire blankets, mineral wool, liquid sealants or cover plates are required, although they can be used with the joint system
♦ Depending on the application, this product can be supplied un-coated or coated on one or both sides. Un-coated material is to be used in enclosed applications only
♦ Sizes available in 1/4” increments
♦ Standard color: Gray
 +/- 50% based on UL listings

1/4" to 2.25"

(6.4mm to 57.2)

CST(FR) CSH(1FRH)-Series

CSH(2FRH)-Series

CSH(3FRH)-Series

♦ Watertight: Installed with tensionless bellows, which when installed with an optional silicone bead on the weather face, maintains a watertight seal.

♦ Sound Attenuation minimizes sound transfer.

♦ Non-Invasive Anchoring: There is no drilling or modification to the substrate required.

♦Factory Fabricated Transitions: Continuity of seal through changes in plane and direction is essential to system performance.

+/- 25% or         +/- 50% based on UL listings

1/4" to 2.25"

(6.4mm to 57.2)

 Image1 FB-Series ♦ The FB-Series system is adaptable to many applications and can be used with most of the EMS expansion joint products
♦ Has been tested to ensure compliance with various building design codes. The product carries ratings in compliance with U.L. testing as well as ISO Certification schedule for a two-hour rating
♦ The FB system has the ability to protect the application with a 50% lateral shear capacity
♦ Rolls of the product are accompanied by galvanized, bent metal flanges, which securely anchor the stainless steel and ceramic fiber fire blanket package
 +/- 25% 3/4" to 15"

(19.1 mm to 381)

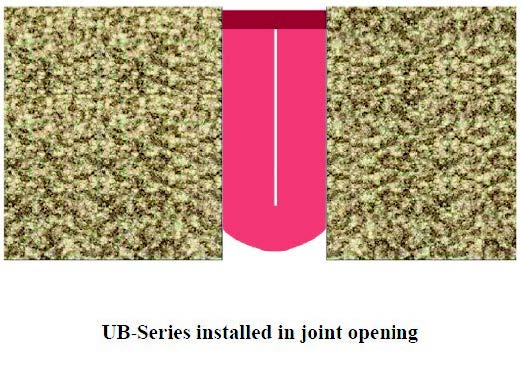

UB-Series ♦ Adaptable to many applications and can be used with most of the EMS expansion joint products
♦ The Ultra Block (R) (UB-Series) fire stop system is a pre-engineered, patented, flexible textile fiberglass roll material with a fiberglass matte facing, containing approximately 30% by weight unexpanded vermiculite which expands when exposed to heat
♦ When used together with an approved sealant, it will provide a 2, 3 or 4 hour fire rated joint system as designated by design configuration
♦ When exposed to fire on the caulked and un-caulked side, there is no passage of destructive heat to the sealant bead on the opposite side
♦ Tested to various standards including UBC, BOCA, SBCCI, ASTM and NFPA.
+/- 50%  .62" to 2.25"

(16mm to 57)
