Summary and Description:

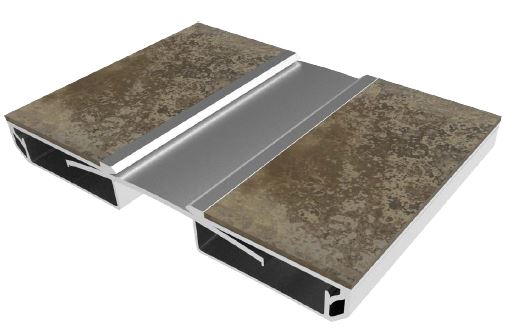

The seismic flooring infill system is designed to accept most traditional floor systems and allows for multi-directional thermal movement, yet minimizes the sight-line when installed.

Features and Benefits:

EASIER INSTALLATION: The beveled edge relief on the extrusion virtually eliminates any need to remove concrete from the block-out.
FLOORING INFILL: Designed with a recess for vinyl, carpet or tile (VCT) flooring to cover the aluminum plate and reduce the overall sight-line.
COORDINATING CORNERS: Available with corner option for a complete floor solution.

Details:

MATERIAL: 6063-T6 Aluminum
FINISH: Mill
MOVEMENT: Thermal (Horizontal/Vertical), Seismic (Lateral Shear)

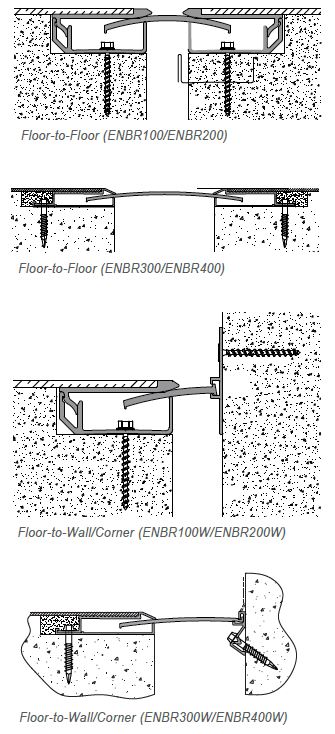

MOUNTING: Block Out

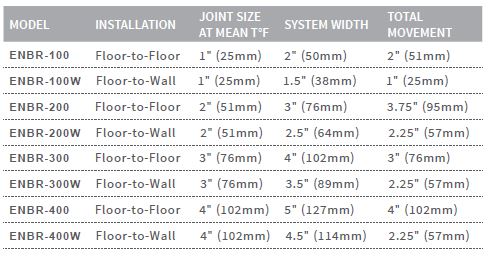

JOINT SIZE: 1" to 4"
LENGTH: 10 linear feet
LOAD: Pedestrian and Light Cart
INSTALLATION: Floor
OPTIONS: Moisture barrier, fire barrier
