EFCT-Series

Summary and Description:

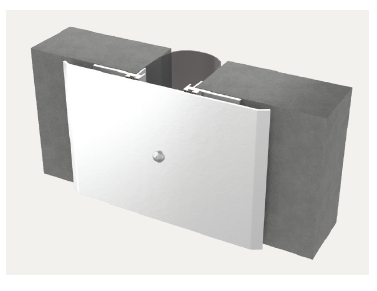

The Seismic Architectural Wall System is a wall and ceiling system designed to accommodate both thermal and multi-directional movement. The system provides a simple, attractive and durable solution for internal environments.

 Features and Benefits:

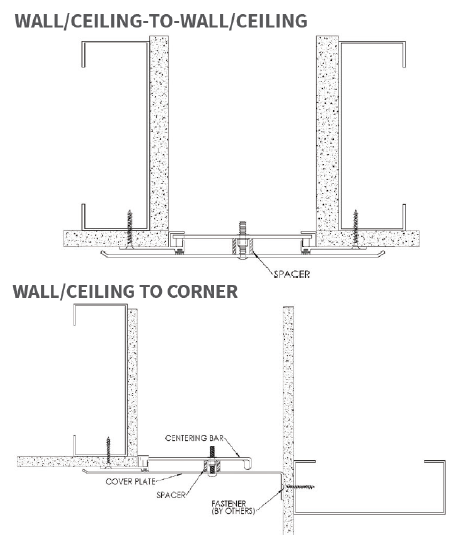

SEISMIC CENTERING BAR: System realigns itself with the self-centering bar, maintaining a safe, clean look.
ARCHITECTURAL ELEGANCE: The clear anodized cover plate finish provides a high-end appearance.
COORDINATING CORNERS: Available with corner option for a complete solution.

Details:

MATERIAL:
*6063-T5 Aluminum, Meets ASTM B221
*6061-T6 Aluminum, Meets ASTM B209
*5052-H32 Aluminum, Meets ASTM B209
FINISH: Clear anodized
MOVEMENT: Thermal (Horizontal/Vertical); Seismic (Lateral Shear)
MOUNTING: Surface

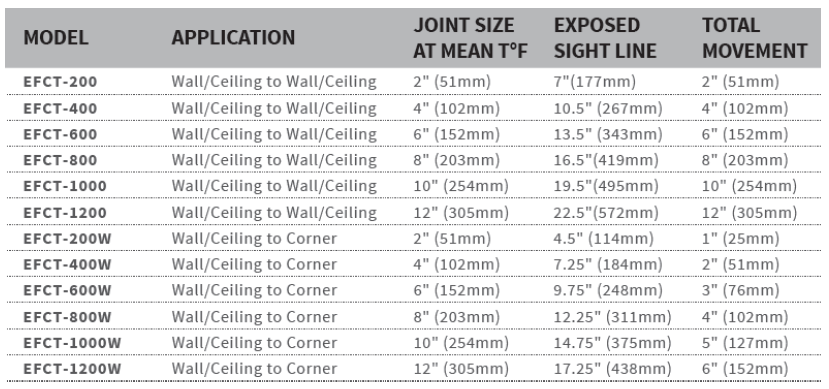

JOINT SIZE: 2" to 12"
LENGTH: 10 linear feet
INSTALLATION: Wall or Ceiling
OPTIONS: Moisture barrier, fire barrier
